Custom Panels &
Engineering Projects

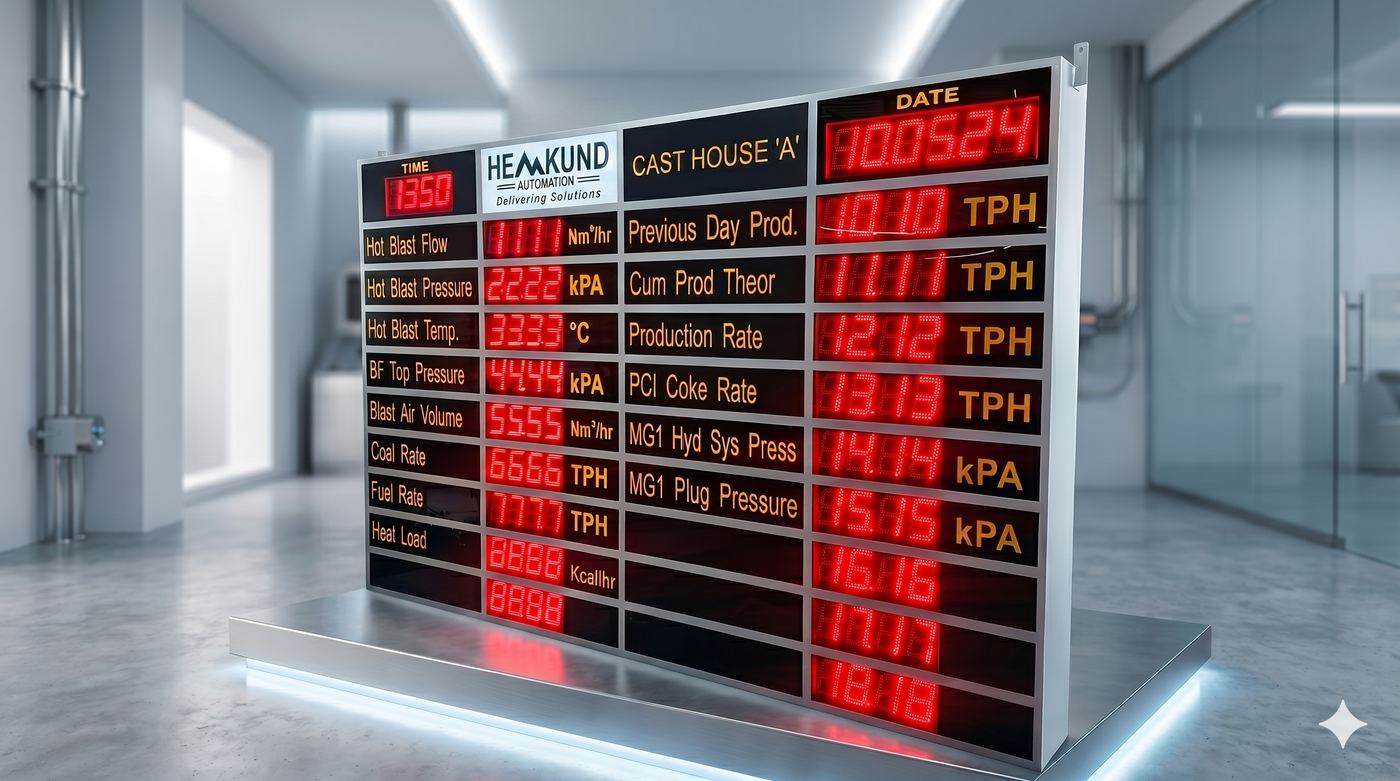

Cast House Process Parameter Display
Large multi-column display monitoring 18 real-time cast house parameters including Hot Blast Flow, Hot Blast Pressure & Temperature, BF Top Pressure, Blast Air Volume, Coal & Fuel Rate, Heat Load, Production Rate, PCI Coke Rate and hydraulic system pressures — all in one panel with integrated time/date display.
📧 Enquire for Similar Project →

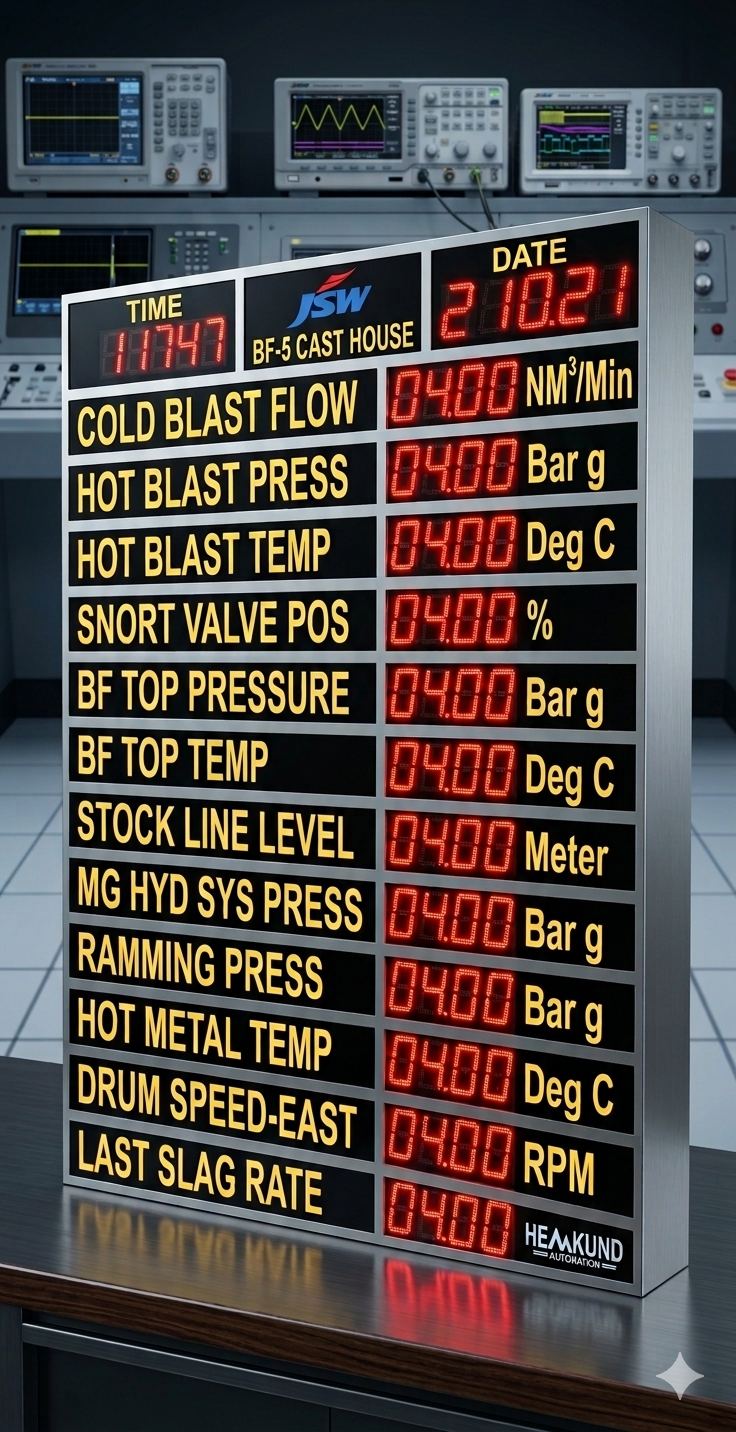

Blast Furnace Cast House Parameter Panel
Tall-format vertical display panel showing 12 critical blast furnace parameters live: Cold Blast Flow, Hot Blast Pressure & Temperature, Snort Valve Position, BF Top Pressure & Temperature, Stock Line Level, MG Hydraulic System Pressure, Ramming Pressure, Hot Metal Temperature, Drum Speed and Last Slag Rate.
📧 Enquire for Similar Project →

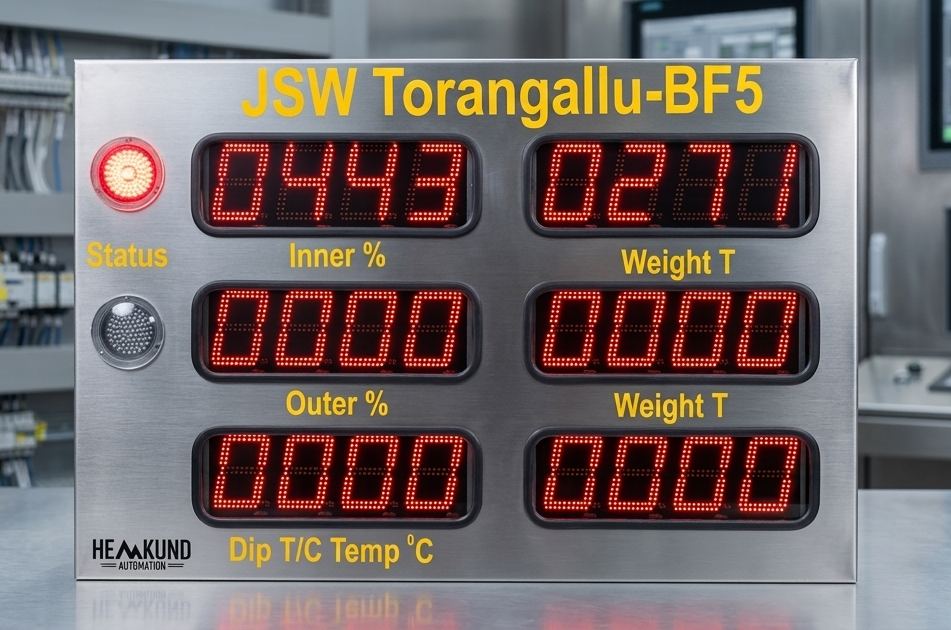

Torpedo Car Monitoring Display
Stainless steel enclosure panel for real-time torpedo car (hot metal ladle) lining monitoring. Displays Inner %, Outer %, Weight (T) at two measurement points and Dip Thermocouple Temperature — with integrated status lamp for condition alert.
📧 Enquire for Similar Project →

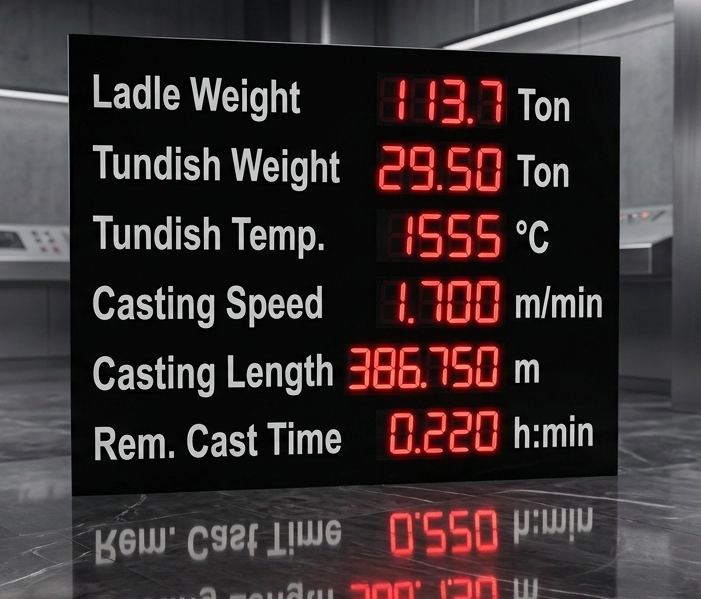

Continuous Casting Parameter Display
Dark-enclosure display for continuous casting machine monitoring showing Ladle Weight, Tundish Weight, Tundish Temperature, Casting Speed, Casting Length and Remaining Cast Time — giving operators all critical caster parameters at a glance.
📧 Enquire for Similar Project →

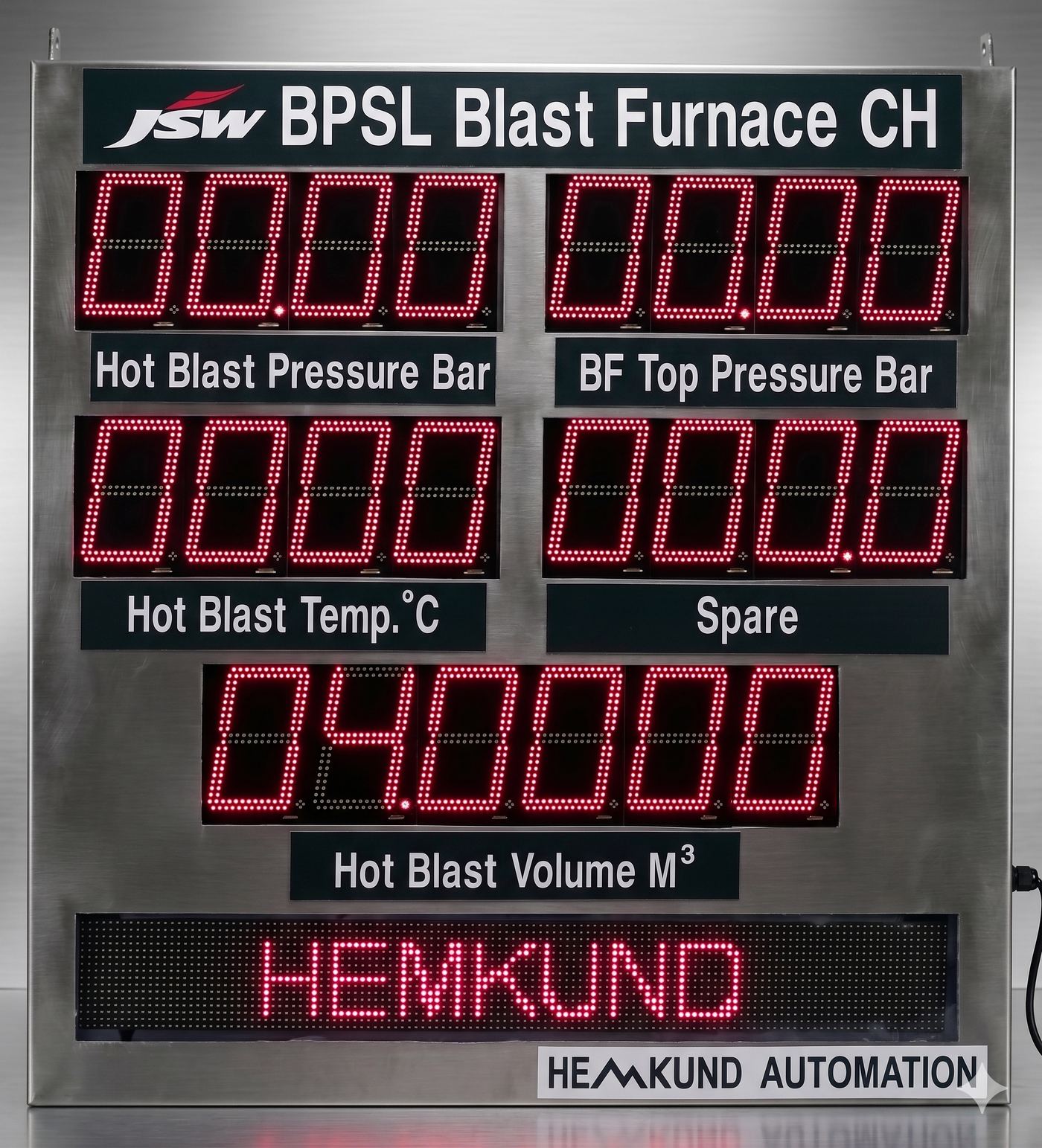

Blast Furnace Cast House Display — SS Enclosure
Stainless steel enclosure display built for a blast furnace cast house showing Hot Blast Pressure, BF Top Pressure, Hot Blast Temperature, Spare and Hot Blast Volume — with a full-width scrolling LED ticker at the base displaying Hemkund identification.
📧 Enquire for Similar Project →

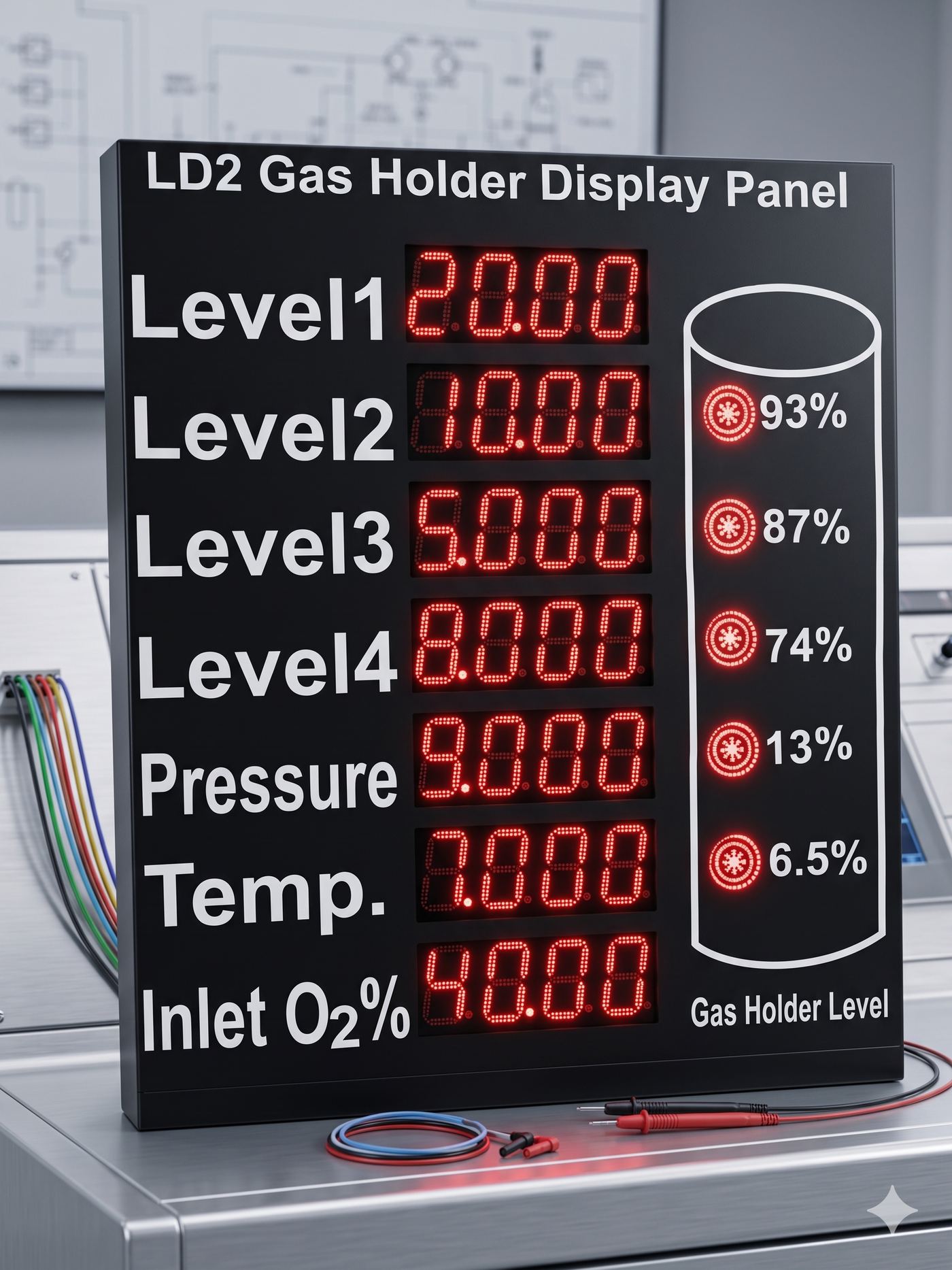

LD2 Gas Holder Level & Parameter Panel
Innovative display combining numeric parameters (4 Level readings, Pressure, Temperature, Inlet O₂%) with a graphical gas holder representation on the right side — showing gas holder fill level percentages visually alongside numeric readings. A unique hybrid display design.
📧 Enquire for Similar Project →

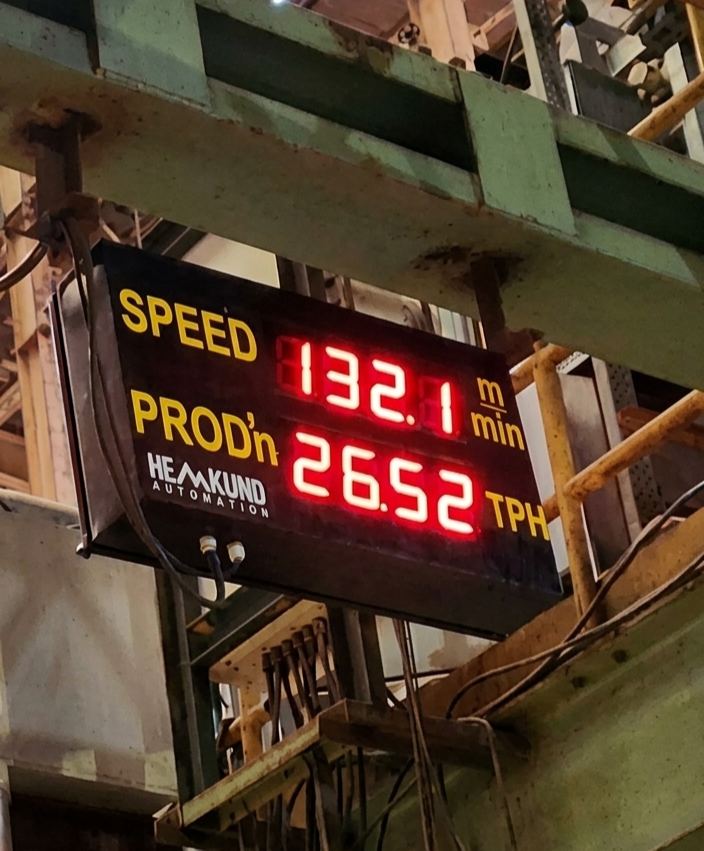

Rolling Mill Speed & Production Rate Display
Live installation photo of a ceiling-mounted display in a steel rolling mill showing real-time Mill Speed (m/min) and Production Rate (TPH) — fed directly from the mill automation system. Built for high visibility in a noisy, high-temperature shop floor environment.
📧 Enquire for Similar Project →

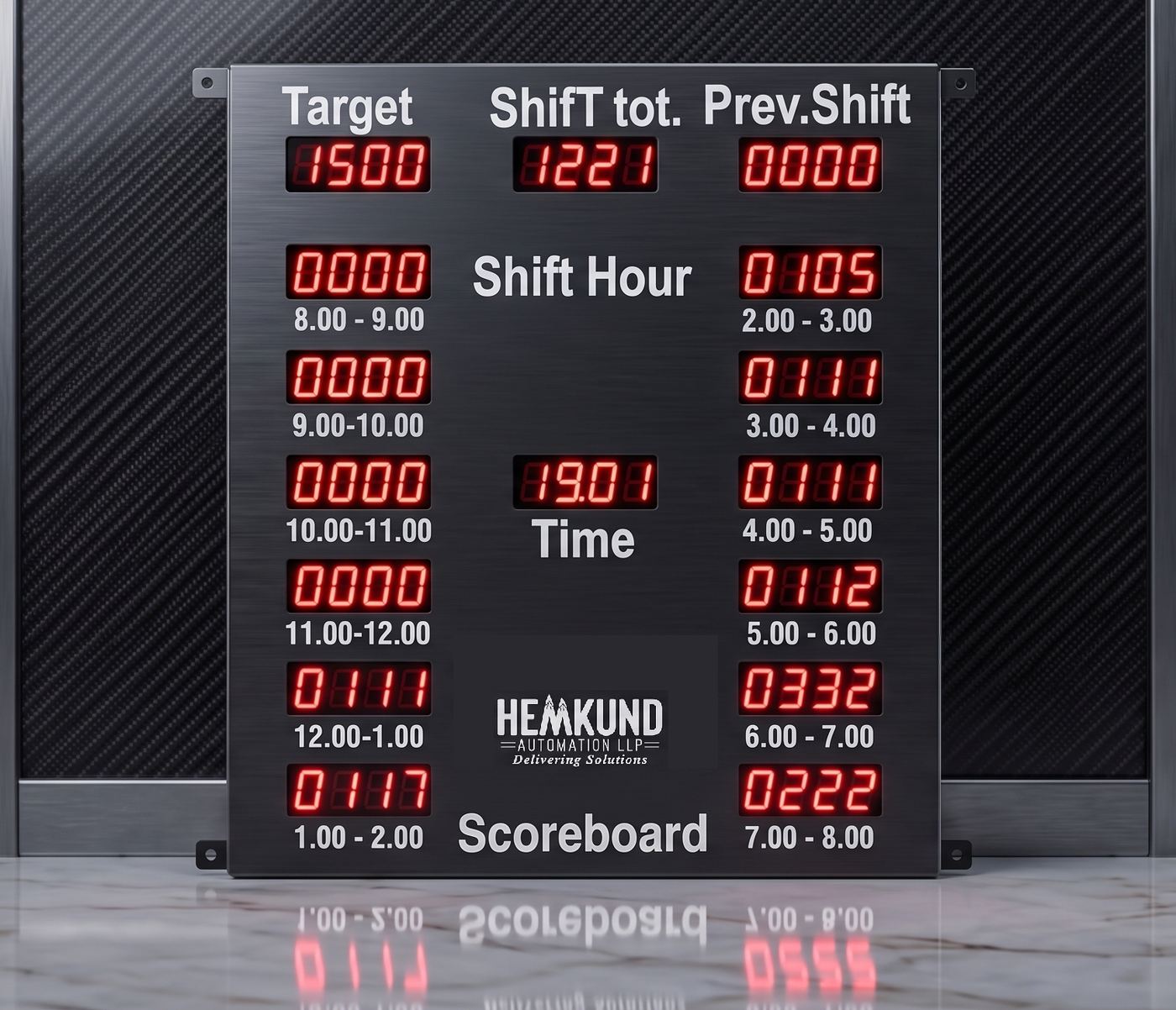

Production Target & Hourly Scoreboard
Shift-wise production scoreboard tracking hourly output against targets. Displays overall Target, Shift Total and Previous Shift figures alongside hour-by-hour breakdowns across the full 8-hour shift — allowing supervisors and operators to track performance gaps in real time.
📧 Enquire for Similar Project →

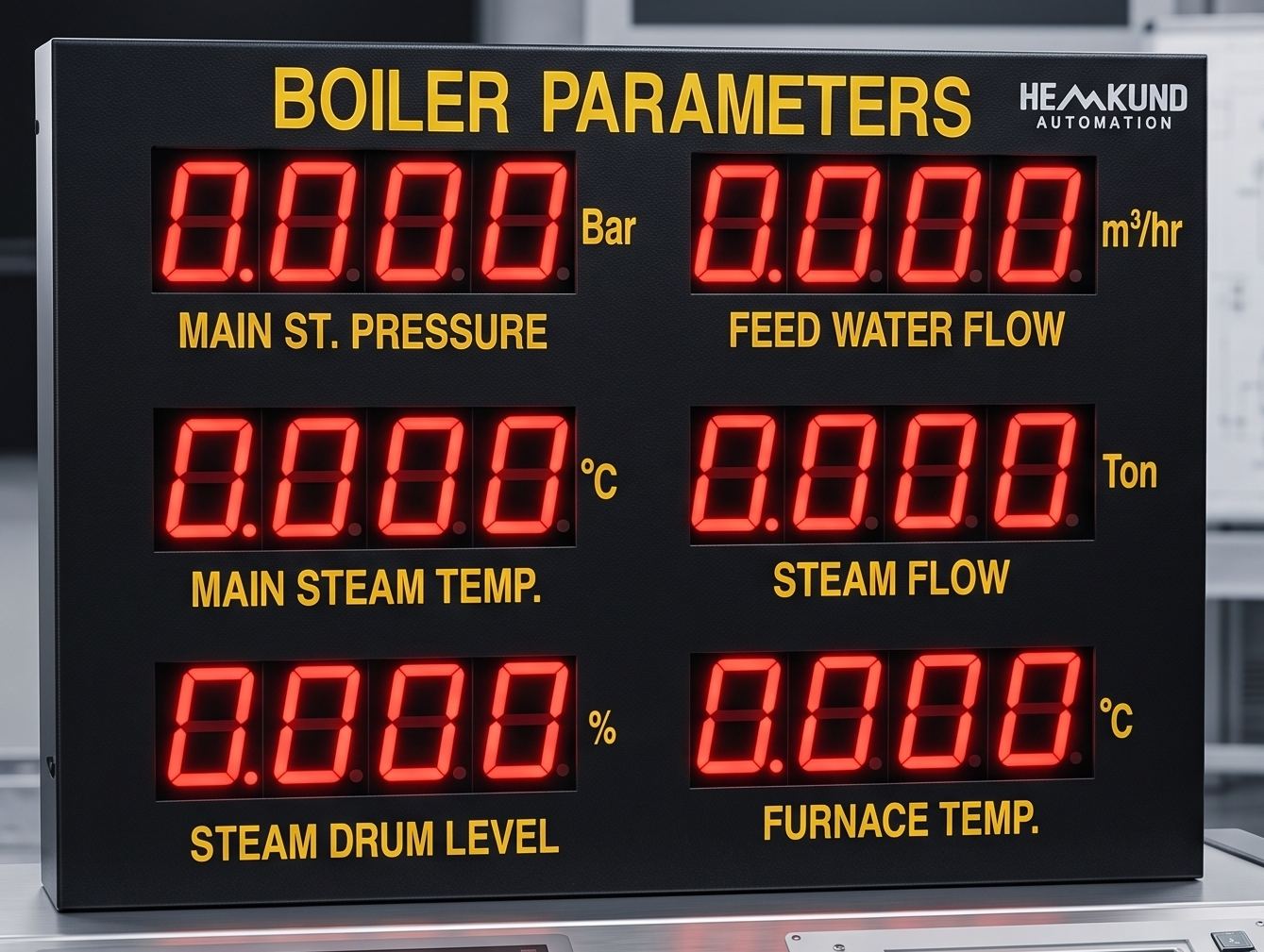

Boiler Parameters Monitoring Display
Compact 2×3 grid display monitoring six critical boiler parameters simultaneously: Main Steam Pressure (Bar), Feed Water Flow (m³/hr), Main Steam Temperature (°C), Steam Flow (Ton), Steam Drum Level (%) and Furnace Temperature (°C).
📧 Enquire for Similar Project →

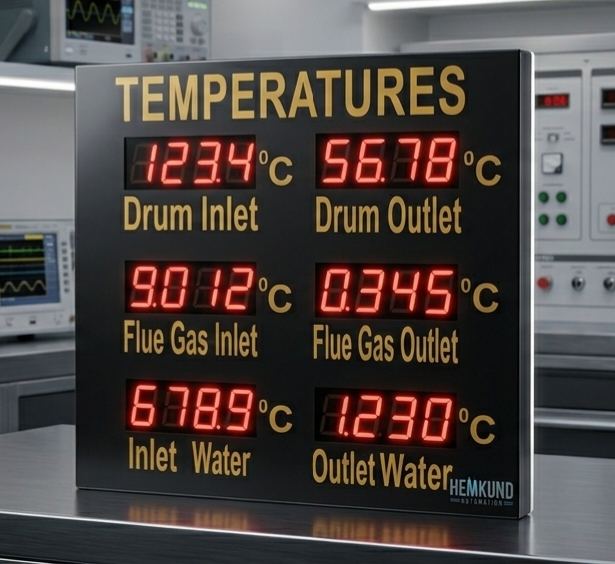

Multi-Point Temperature Monitoring Display
Six-point temperature display monitoring inlet and outlet temperatures across three media: Drum Inlet/Outlet, Flue Gas Inlet/Outlet and Water Inlet/Outlet — all displayed simultaneously for heat exchanger and boiler thermal monitoring.
📧 Enquire for Similar Project →

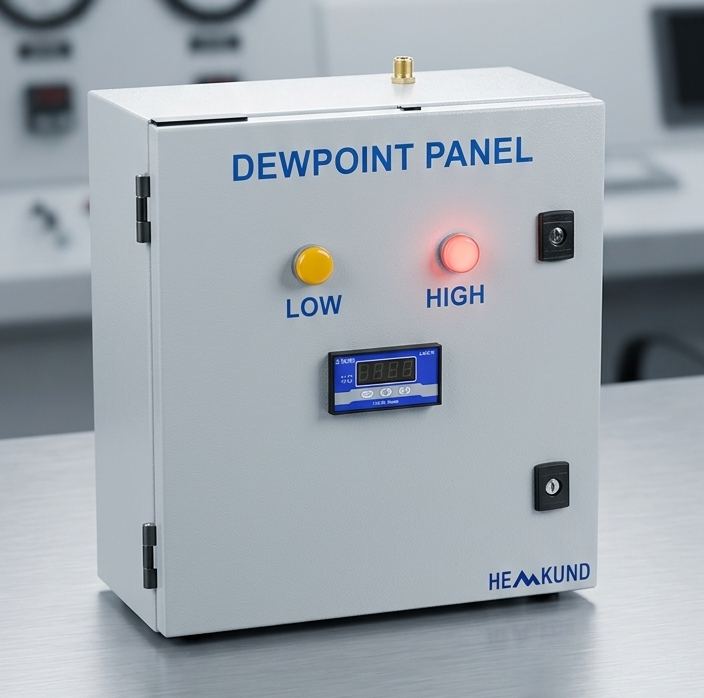

Dewpoint Monitoring & Alarm Panel
Compact field-mounted panel housing a dewpoint sensor, process indicator and dual-threshold alarm outputs. LOW (yellow) and HIGH (red) status lamps provide immediate visual alert for dewpoint exceedances — designed for compressed air quality and gas drying process monitoring.
📧 Enquire for Similar Project →

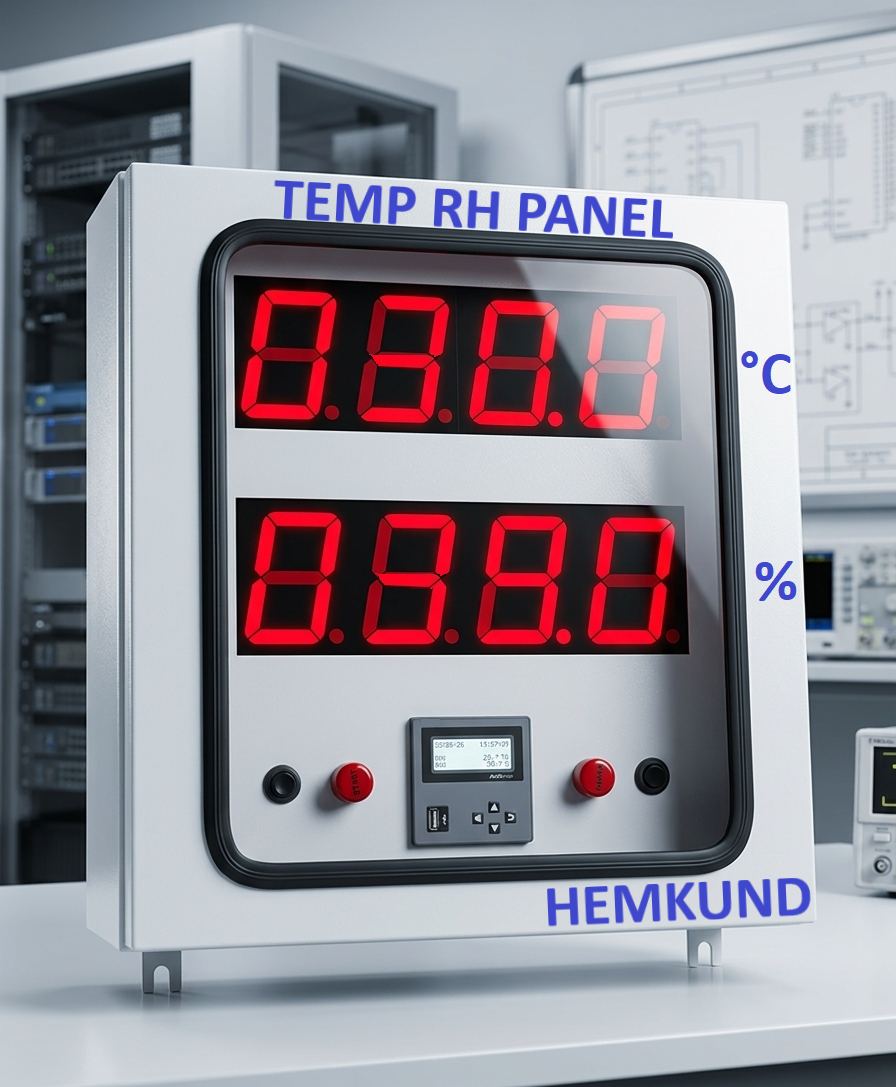

Temp & Humidity Panel with Data Logger
IP65-rated white enclosure panel with large-digit Temperature (°C) and Humidity (%RH) displays, integrated data logger with USB port for record export, and dual setpoint alarm push-buttons — built for pharmaceutical cold store and cleanroom environmental monitoring with documentation compliance.
📧 Enquire for Similar Project →

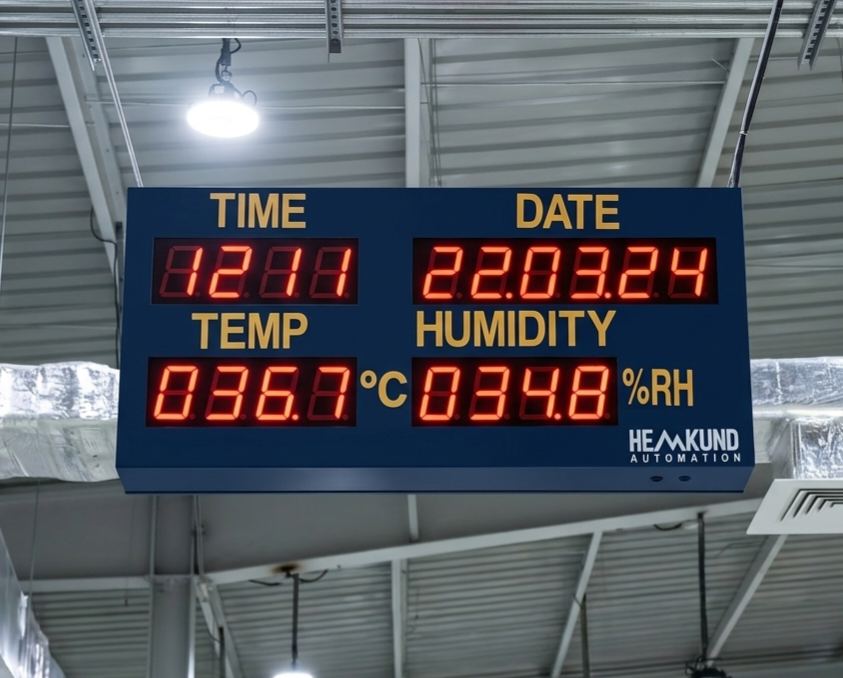

Ambient Temp, Humidity, Time & Date Display
Ceiling-mounted real installation showing live Time, Date, Ambient Temperature (°C) and Relative Humidity (%RH) on a single display. Installed in a manufacturing or warehousing facility for continuous environmental condition monitoring visible across the floor.
📧 Enquire for Similar Project →
